Aluminum & Metal Strips

Aluminum & Metal Strips Definition

Esdco started to manufacture the metal strips with different widths. They are from pre-painted aluminum or steel. They are pre-painted electro-statically by polyester. We have more than 20 colors and shapes for those strips to satisfy customers’ needs. Aluminum & Metal strips have many Advantages such as

High resistance for humidity, bacteria & termites growth.
Easy assembly & disassembly.
is suitable for any kind of lightening
the strips, The profile & The wall angle are electro-statically pre-painted so they are stainless

They can be devided by its section shape into three types:

Horass
Amon
Habi

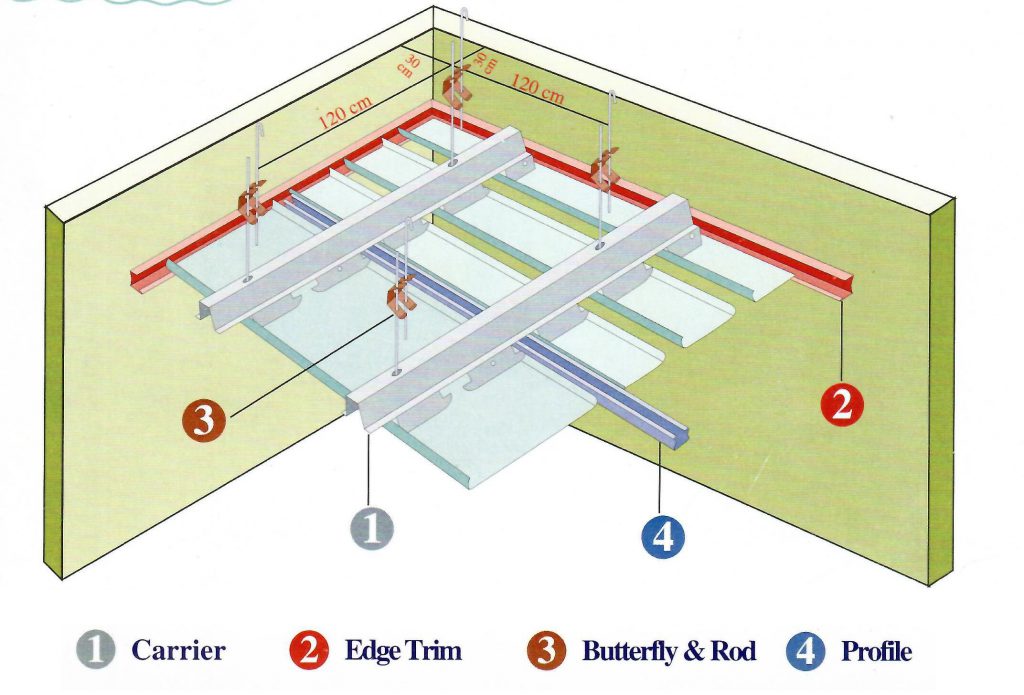

Horus Strips U 100 – U 200

Manufactured from pre-painted aluminum or steel rolls.
Available in many colors.
Manufactured in any length as client’s desire.
Can be corrugated.
In this model, Space between strips can be closed by Alu. Profile.

Specifications:

Module: 100 mm for U 100 (84 mm strips + 16 mm profile).
200 mm for U 200 (184 mm strips + 16 mm profile).

Thickness: 0.5 mm for Horus U 100 (Aluminum or steel).
0.6 mm for Horus U 200 (Aluminum or steel).

Paint: polyester pre-painted.
Edge: Round

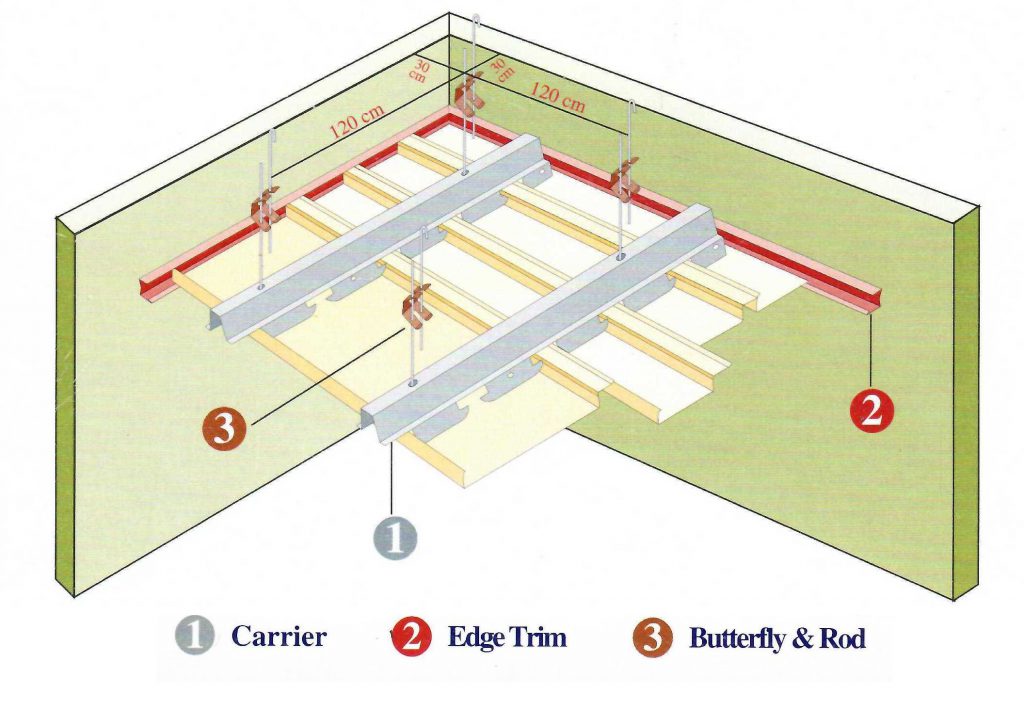

Amon strips Z 100 – Z 200

Manufactured from pre-painted aluminum or steel rolls.
Available in many colors.
Manufactured in any length as client’s desire.

Specifications:

Module: 100 mm for U 100 (100 mm strips).
200 mm for U 200 (200 mm strips).

Thickness: 0.5 mm for Horus U 100 (Aluminum or steel).
0.6 mm for Horus U 200 (Aluminum or steel).

Paint: polyester pre-painted.
Edge: straight

Habi strips C 300

Manufactured from pre-painted aluminum or steel rolls.
Available in many colors.
Manufactured in any length as client’s desire to 180 cm.
Can be installed & rested on the wall angles on both sides without using carrier.

Specifications:
